¡ó Product description
Applications and installation
GP series self-suction water pumps are new designed high efficiency house-hold electric pumps, with the motor and the pump mounted together. They are sealed with wear-resistant mechanical sealing, and carry the merits of easy to operate, light weight, high efficiency and relative low consumption of power.
GP series pumps have self-sucking function, which makes it better used in places that pumping clean water, and request intermission kind of working, but without refilling the water from each restarting of the pumps.
Pumps should be installed in a covered area, protected against the weather.
Operating limitations
Liquid temperature up to 60¡æ
Ambient temperature up to 40¡æ
Total suction lift up to 9m
Continuous duty
Construction features
Pump Body: cast iron
Motor Housing: aluminum
Shaft: 45# steel /stainless steel
Impeller: Brass
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44/IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/ metalized carbon

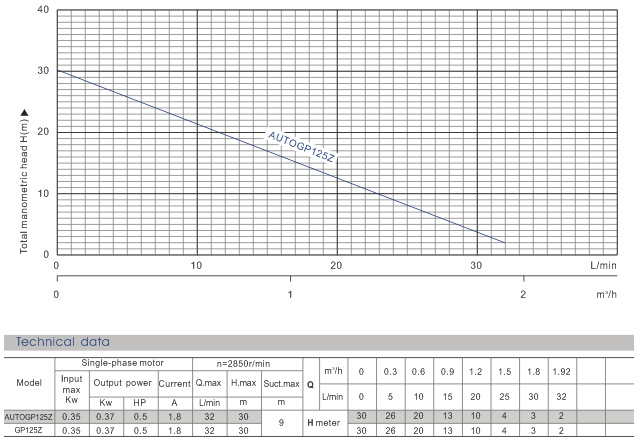

Technical parameters
